Product Description

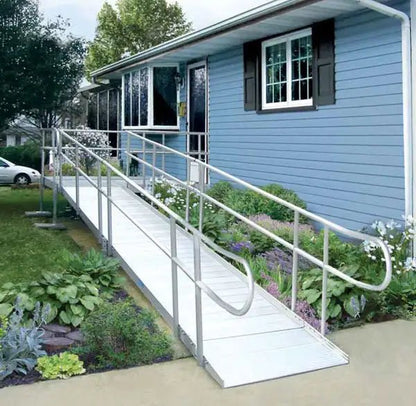

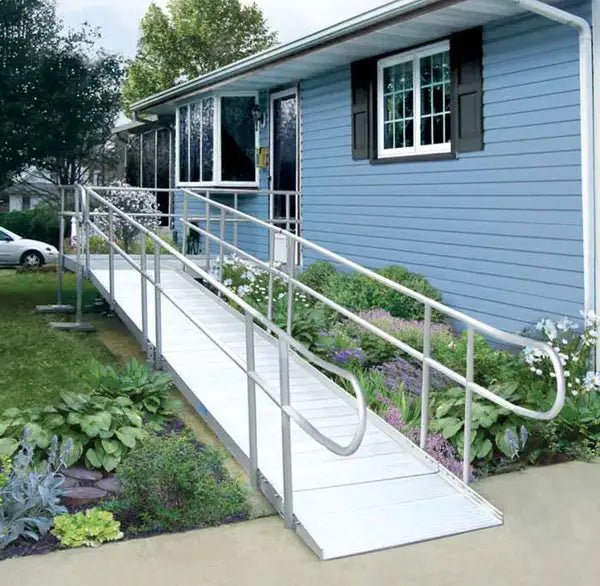

The Armada Modular Aluminum Ramp Kit with Turns is a configurable, ADA-compliant modular wheelchair ramp system built from anodized aluminum — allowing ramp runs to change direction at 90° or 180° turns via platform landing sections, enabling accessible entry where space or site conditions make a straight run impractical. Designed for residential and commercial applications across Canada, with a 10-year warranty, factory-stocked components, and a 300 lb concentrated load rating. Ramp sections available in 4′, 5′, 6′, and 8′ lengths.
Not every entrance can accommodate a straight ramp. When a driveway, narrow lot, or structural barrier forces a change in direction, a standard single-run ramp is not an option — but the Armada system is. By adding platform landing sections at the turn point, the ramp changes direction smoothly, safely, and in compliance with ADA section 4.8 guidelines. This is the defining advantage of a modular ramp with turns: the same ramp length and slope relationship (1 foot of ramp for every inch of rise) is maintained through the turn, without the user having to navigate an unsafe transition.
Armada modular ramps are constructed from aerospace-grade aluminum alloy (6061-T6 or 6005-T5) in a welded, anodized satin finish that does not chip, flake, or rust. The system is fully adjustable, reconfigurable, and relocatable — making it a long-term investment that can move with the user or be reconfigured for a different site. Factory-stocked components ship within 2–3 business days. Available from Factory Direct Medical, Canada’s trusted source for accessibility and mobility equipment.
Key Features
Turn-Compatible Platform Landings Integrated platform landing sections enable 90° and 180° directional changes in the ramp run — making the Armada system viable for sites where a straight-run configuration is blocked by space, structures, or lot boundaries.
ADA & ANSI Compliant Meets ANSI and ADA section 4.8 guidelines for ramp slope, handrail height, and gripping surface — suitable for residential accessibility projects and commercial applications requiring code compliance documentation.
Bidirectional Knurled Skid-Resistant Tread Interlocking 1″ × 6″ aluminum treads feature a bidirectional knurled surface that won’t wear off — providing consistent traction for wheelchair, scooter, and walker users in wet, icy, or dry conditions.
Anodized Aluminum Construction Aerospace-grade aluminum alloy (6061-T6 or 6005-T5), welded and anodized — corrosion-resistant, non-combustible, and fully recyclable. No painting or seasonal maintenance required to maintain appearance or structural integrity.
Fully Modular & Relocatable All components — ramp sections, platforms, handrails, and support legs — can be disassembled, reconfigured, and reinstalled at a new site. Ramp sections available in 4′, 5′, 6′, and 8′ standard lengths; custom lengths also available.
10-Year Warranty Backed by a 10-year warranty on materials and workmanship — one of the strongest coverage periods available in the Canadian modular ramp market, reflecting the durability of the anodized aluminum system.
ADA-Compliant Design, Modular Flexibility & Turn Configuration
The structural basis of the Armada system is the 1:12 slope rule: for every 1 inch of vertical rise, 1 foot of ramp run is required. This ratio is codified in ADA guidelines and widely adopted by Canadian residential accessibility standards as the maximum safe slope for occupied wheelchair and scooter use. The Armada kit’s platform landing sections allow the total ramp run to be distributed across two or more directional segments — each maintaining the 1:12 slope independently — so the user experiences a consistently safe gradient through the turn, not a steeper compensating slope on either side of it.
Handrails on the Armada system meet ADA section 4.8 specifications: top rail at 30–34″ above the ramp surface, intermediate rail at 18–22″, continuous gripping surface at 1½″ diameter, and anodized aluminum construction with stainless steel fasteners. Support legs are adjustable and swivel to remain perpendicular to the slope, with 6″ × 10″ foot pads that distribute load without requiring concrete footings for most residential installations. Assembly requires only a 1/2″ wrench and the included stainless steel hardware. Note: ramps are non-returnable due to inspector rejection; confirm local building codes and measurements before placing your order.
Specifications
| Specification |
Details |
| Model / SKU |
arc014 |
| Brand |
Armada (AlumiRamp) |
| Material |
Aluminum 6061-T6 or 6005-T5 (welded, anodized satin finish) |
| Ramp Sections |
4′, 5′, 6′, 8′; custom lengths available |
| Tread |
Interlocking 1″ × 6″ with bidirectional knurled skid-resistant surface |
| Minimum Curb Height |
2″ |
| Live Load Capacity |
100 lbs / sq ft |
| Concentrated Load |
300 lbs |
| Handrail Height (Top Rail) |
30″ – 34″ above ramp surface |
| Handrail Height (Intermediate) |
18″ – 22″ |
| Handrail Diameter |
1½″ continuous gripping surface |
| Support Legs |
Adjustable; 6″ × 10″ foot pads; swivel to slope |
| Fasteners |
Stainless steel (included) |
| Assembly Tool Required |
1/2″ wrench |
| Code Compliance |
ANSI and ADA guidelines (residential); ADA section 4.8 (handrails) |
| Slope Rule |
1:12 (1 ft of ramp per 1 inch of vertical rise) |
| Warranty |
10 years (materials and workmanship) |
| Ship Time |
2–3 business days (factory-stocked); peak periods may vary |
| Return Policy |
Non-returnable |
| Application |
Residential and commercial |
Best For
- Homeowners and property managers who need a modular wheelchair ramp that changes direction — where a straight ramp cannot reach the door due to space constraints, landscaping, or structural barriers
- Wheelchair and scooter users requiring a permanent or semi-permanent accessibility solution that meets ADA and ANSI slope and handrail standards at a residential entrance
- Occupational therapists and discharge planners specifying modular ramp systems for clients being discharged from hospital to home, where the entrance requires a turn configuration
- Commercial properties, clinics, and long-term care facilities needing a code-compliant, reconfigurable aluminum ramp system that can be reinstalled if the building changes use or layout
- Contractors and accessibility consultants seeking a fully documented, warranty-backed modular ramp system that ships within 2–3 business days from factory stock
Why Choose the Armada Modular Ramp with Turns
- The turn-compatible platform landing sections solve the single most common reason a straight modular ramp cannot be installed — restricted run length — by allowing the ramp to navigate the space rather than requiring the space to fit the ramp
- Anodized aluminum construction eliminates the maintenance burden of painted wood or steel ramps: no repainting, no rust treatment, no seasonal weatherproofing — the finish is integral to the alloy
- The 10-year warranty is among the strongest offered for modular ramp systems in Canada, backed by aerospace-grade alloy construction rated to 100 lbs/sq ft live load and 300 lbs concentrated load
- Full modularity means the ramp investment is not site-specific — components can be disassembled and relocated to a new home, reconfigured for a different entrance, or adapted as mobility needs change
- Available from Factory Direct Medical — Canada’s trusted institutional and home care accessibility retailer — with expert product support and dedicated Canadian customer service
Frequently Asked Questions
How long does a wheelchair ramp need to be?
The standard rule for wheelchair ramp length is the 1:12 slope ratio: for every 1 inch of vertical rise (the height difference between ground level and the entrance threshold), you need at least 1 foot of ramp run. A 6-inch step requires a minimum 6-foot ramp; a 12-inch rise requires at least 12 feet. For a turn configuration, each ramp segment follows this ratio independently — the turn platform does not reduce the required run length. Always confirm local building codes before installation, as requirements may vary by municipality or province.
What is a modular ramp system and how does it differ from a portable ramp?
A modular ramp system like the Armada is a semi-permanent to permanent accessibility structure assembled from standardized aluminum components — ramp sections, platform landings, handrails, and adjustable support legs. Unlike portable ramps (which fold for transport and are used temporarily), modular systems are assembled on-site, anchored to the ground, and designed for daily long-term use. They are fully configurable with turns and intermediate landings, meet ADA and ANSI code requirements, and carry structural warranties. Modular ramps are the preferred solution for permanent residential and commercial accessibility installations.
Can the Armada modular ramp be moved or reconfigured after installation?
Yes. All Armada ramp components — ramp sections, platform landings, handrails, and support legs — are bolted together with stainless steel fasteners and can be disassembled using a 1/2″ wrench. The system can be reinstalled at a new site, reconfigured for a different entrance layout, or adapted with additional sections as needs change. This modularity makes the Armada a long-term investment rather than a site-specific fixture. Note that ramps are non-returnable once ordered; confirm all measurements and local code requirements before placing your order.
Summary
The Armada Modular Aluminum Ramp Kit with Turns is the ADA-compliant modular wheelchair ramp Canadian homeowners, contractors, and accessibility professionals choose when a straight run is not possible — featuring turn-compatible platform landing sections for 90° and 180° configurations, aerospace-grade anodized aluminum construction rated to 300 lbs concentrated load, a bidirectional skid-resistant tread surface, ADA 4.8-compliant handrails, fully modular and relocatable design, and a 10-year warranty with factory-stocked components shipping within 2–3 business days.
Important Notice: Armada Modular Ramps are designed for use by wheelchair, scooter, and walker users in residential and commercial settings. Always follow the 1:12 slope rule and confirm ramp length requirements based on your specific vertical rise before ordering. Verify all local building codes and permit requirements before installation — requirements vary by province and municipality. Ramps are non-returnable once ordered due to custom configuration. Do not exceed the rated load capacity. Installation should be performed by a qualified individual; consult a contractor or occupational therapist if unsure. Regular inspection for wear, loose components, and surface debris is required to ensure ongoing safety.
