3G Platinum Folding Electric Wheelchair w/ 8" Rear Wheels - CH4080

0 Review

Footrest Options :
Accessories :
$3,595.00
$3,595.00
Talk to a Product Specialist
Free Shipping

Free Shipping

Factory Direct Value

Factory Direct Value

Expert Support Team

Expert Support Team

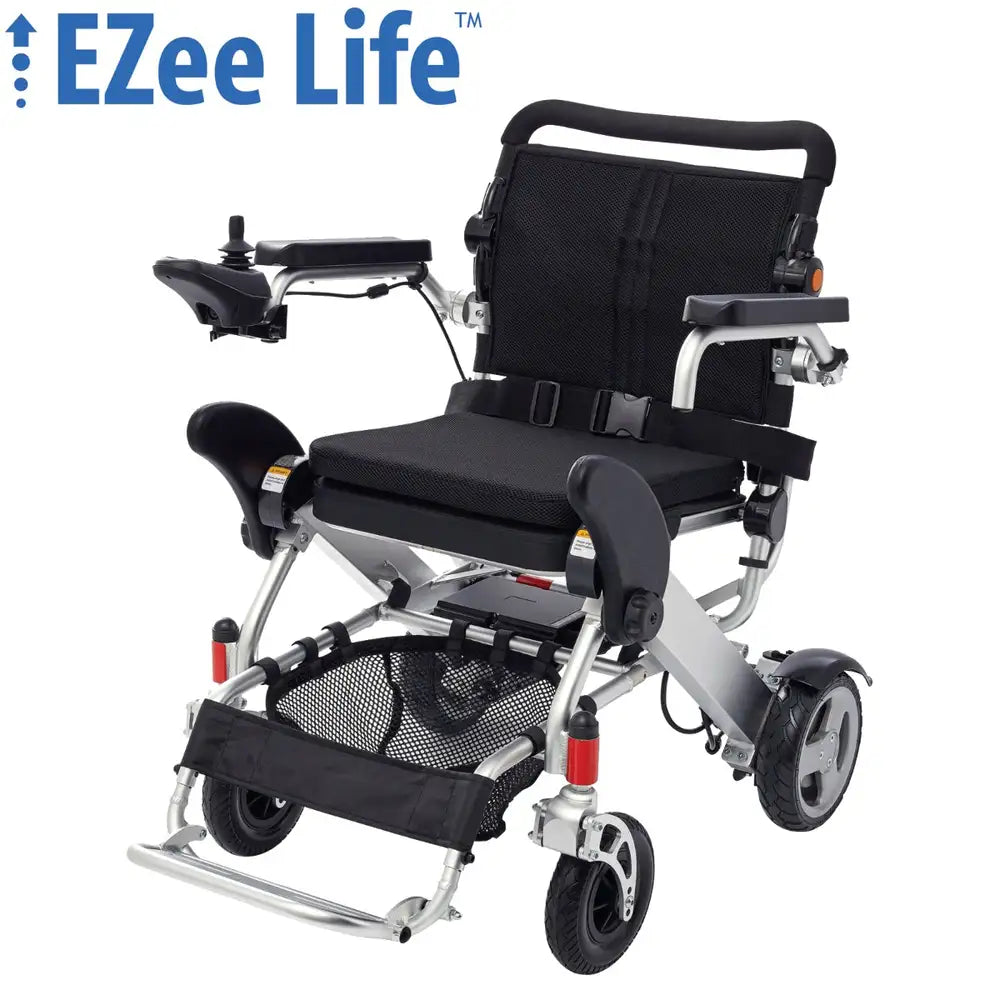

The CH4080 DLX EZee Fold power wheelchair is one of our “top of the line” Deluxe lightweight folding wheelchairs.
The CH4080 DLX has 7” front casters with suspension forks, 8” rear wheels and the G3 easy fold mechanism. It is designed for those who want a high quality folding power wheelchair for travel or home use and will be used primarily indoors and on solid outdoor surfaces.
It's 18 km range will provide all day independent mobility for even the most active users. Range is dependent on terrain travelled, age and condition of batteries and load weight on wheelchair.
3G Platinum Folding Electric Wheelchair w/ 8" Rear Wheels - CH4080

3G Platinum Folding Electric Wheelchair w/ 8" Rear Wheels - CH4080

$3,595.00

Product Information

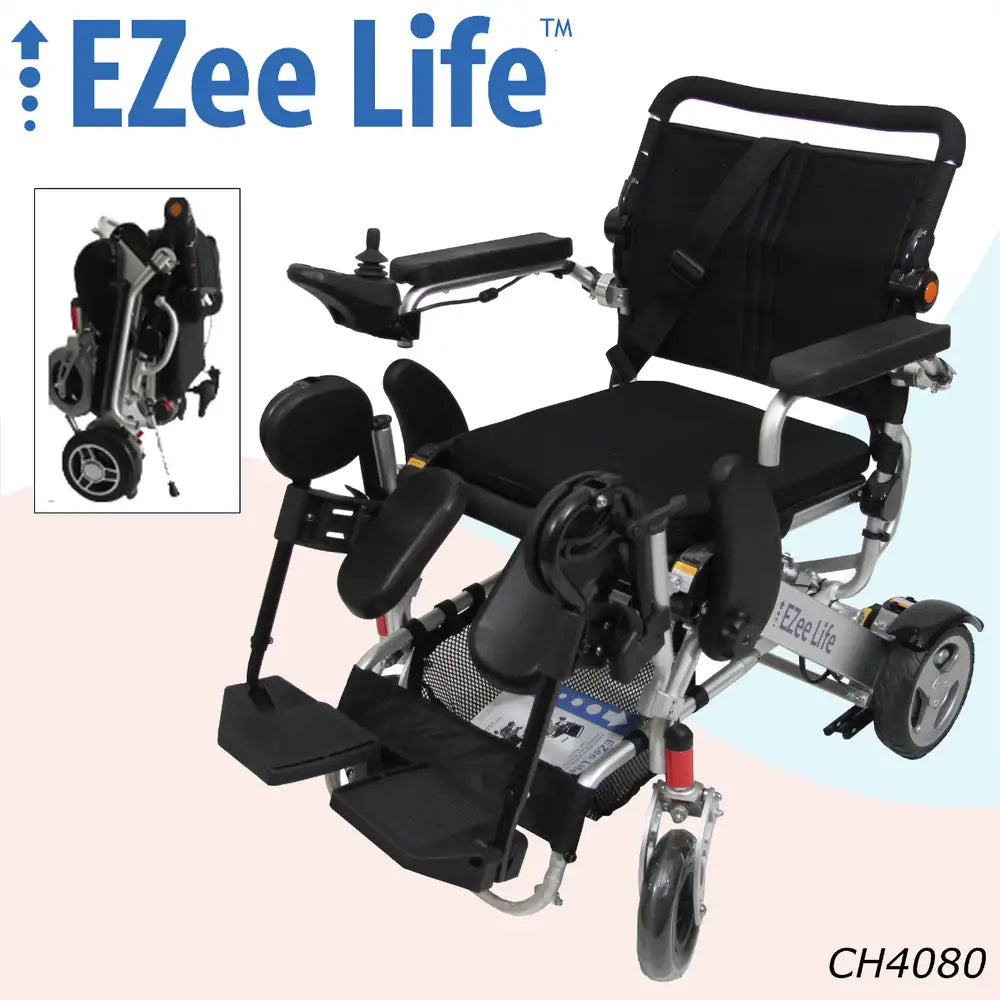

The EZee Fold DLX portable power wheelchair is designed with an easy fold mechanism to provide an easily transportable power wheelchair that can be easily folded up and loaded into vehicles for travel near and far. It folds into a small package without the need to remove parts or reach down to the ground.
The tires are maintenance free for durability and convenience. They will not go soft or become flat because of contact with sharp objects on the sidewalk or floor.
Like many more expensive power chairs the EZee Fold DLX is driven using a joystick that can be mounted on either side of the chair, has flip back arms for easier transfers and access. The chair comes standard with a removable, washable, seat and back cushion for comfort and a seat belt for safety.
While the EZee Fold DLX comes with a high quality lithium ion battery. Additional batteries can be added to the chair to increase the travel range. One added battery will double the wheelchair's range and two extra batteries will triple the wheelchairs' range.
As with any powered mobility device the range will be affected by user weight, terrain travelled, condition of batteries and ambient temperature.

Battery & Wheelchair Reports

Part NameWarranty Length
Frame5 Years
Motor2 Years
Battery1 Year
Joystick1 Year
Other items1 Year
Wear ItemsExcluded

Any alterations, misuse, abuse, or accidental damage voids this warranty. EZee Life™ reserves the right to replace or repair any part that has become defective.

The warranty does not extend to consequential costs resulting from the fault or defect of the product: freight and travel costs, loss of earnings, or other expenses that one may incur.

Warranty is valid for the original purchaser only and the original receipt must be presented before any warranty options are considered. Please also be prepared to provide the date of purchase and serial number.

Features

  • Very Lightweight (27.5 kg)
  • 150 kg Weight capacity
  • 24 V Brushless motors
  • Easy to fold
  • 4 Position Adjustable backrest
  • Adjustable leg guard
  • Anti-Tippers
  • Removable Seat Cushion
  • Seat Belt
  • Storage Pouch
  • 7” front caster with suspension
  • Adjustable 1 piece footrest
  • Optional Swing away footrests
  • 18 KM Range

Specifications

Metric Imperial
Seat Width: 42 cm 16.5”
Seat Depth: 42 cm 16.5”
Seat Height: 51 cm 20”
Back height: 45 cm 17.7”
Arm height: 21 cm 8.3"
Arm length: 35 cm 13.8"
Foot rest length range: 48 - 50 cm 18.9" - 19.7"
ELR length range: 55 - 126 cm 21.7" - 49.6"
Weight of removable leg rests: 4.96kg 10.9 lb
Removable leg rests hanger angle: 35° - 95° 35° - 95°
Wheelbase length: 45.2cm 17.8"
Turning Radius: 90cm 35.4"
Wheel size: 20.3 cm 8”
Caster size: 17.8 cm 7”
Weight Capacity: 150 kg 330 lb
Frame Material: aluminum alloy aluminum alloy
Suspension: frog leg forks frog leg forks
Weight of chair: 27.5 kg 60.5 lb
Batteries: 2 x 12v – 16 AH Lithium 2 x 12v – 16 AH Lithium
Overall size: 100 x 70 x 89 cm 39.4” x 27.6” x 35”
Folded Size: 34 x 70 x 75 cm 13.4” x 27.6” x 29.5”
Max. Speed: 6 km/h 6 km/h
Max. Climbing Grade: 12° 12°
Charge time: 8h-10h 8h-10h
Range: 18 km 11.3 m
Box size: 70 x 37 x 87cm 27.6" x 14.6" x 34.3"
Weight in box: 33kg 72.8 lb

*Speed and Range are dependent on the weight of the user, condition of the batteries and terrain travelled. Weights & measurements are approximate.

Contact Us

Have questions? Our experts will respond within 24 hours.

Downloads

Access product manuals, certificates, and other important resources.

User Manual

PDF • 2.4 MB

Complete user guide with setup, operation, and safety instructions

Download
View All →

Frequently asked questions

The EZee Fold DLX 8 is a lightweight folding power wheelchair designed for both indoor and outdoor mobility. Unlike a manual wheelchair, it is powered by dual motors and controlled by a joystick, allowing users to travel independently without needing to push. Its foldable aluminum frame makes it easier to store and transport in vehicles compared to traditional rigid power chairs.

The EZee Fold DLX 8 supports users weighing up to approximately 150 kg (330 lbs). Its reinforced aluminum alloy frame is designed to balance durability with portability, making it suitable for everyday mobility needs.

The EZee Fold DLX 8 offers an estimated travel range of up to around 18 km per charge, depending on user weight, terrain, battery condition, and usage patterns. Additional batteries may be used to extend travel distance for longer outings.

Yes. The wheelchair features an easy-fold mechanism that allows it to collapse into a compact size without removing major components. This makes it suitable for vehicle transport, travel, and storage in smaller spaces such as closets or car trunks.

The EZee Fold DLX 8 includes a padded seat and back cushion, flip-back armrests for easier transfers, a seat belt for added safety, anti-tippers for stability, and a joystick control that can be mounted on either side depending on user preference.

Yes. It is designed for indoor maneuverability as well as outdoor use on solid, even surfaces. Its compact turning radius and solid tires make it suitable for homes, shopping centres, and paved pathways, though it is best used on relatively smooth terrain.
